eMTA LIRR is a redesign of MTA eTix and TrainTime, utilizing a chatbot to see train schedules, purchase tickets, and see delay alerts.

TL;DR

TL;DR

The process to complete this project is in these 6 little steps.

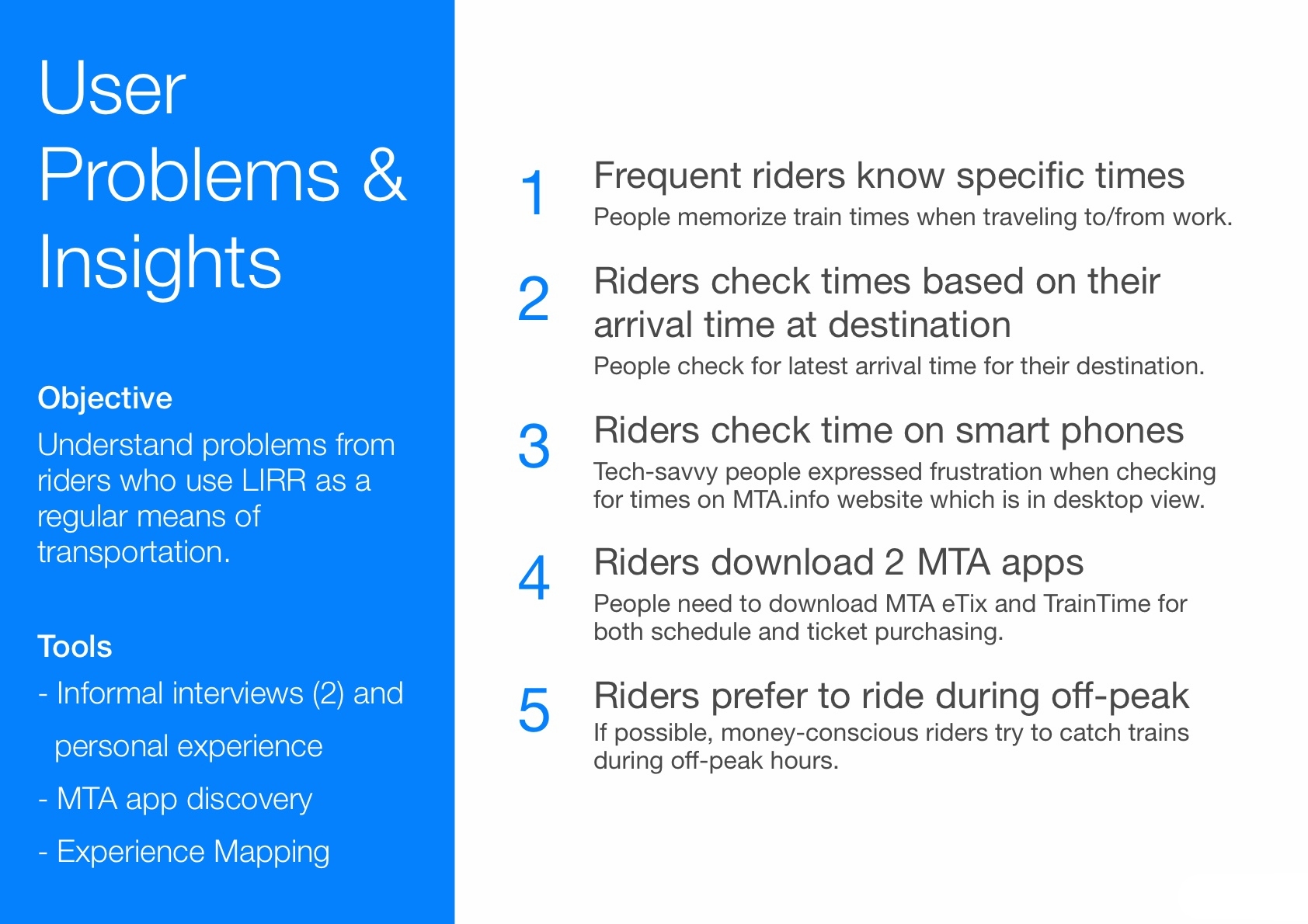

Today

Today

LIRR train times can be viewed on 4 separate formats - MTA.info website, schedule (paper), MTA TrainTime app, and Timetable (electronic) at Penn Station

Current Workflows

Current Workflows

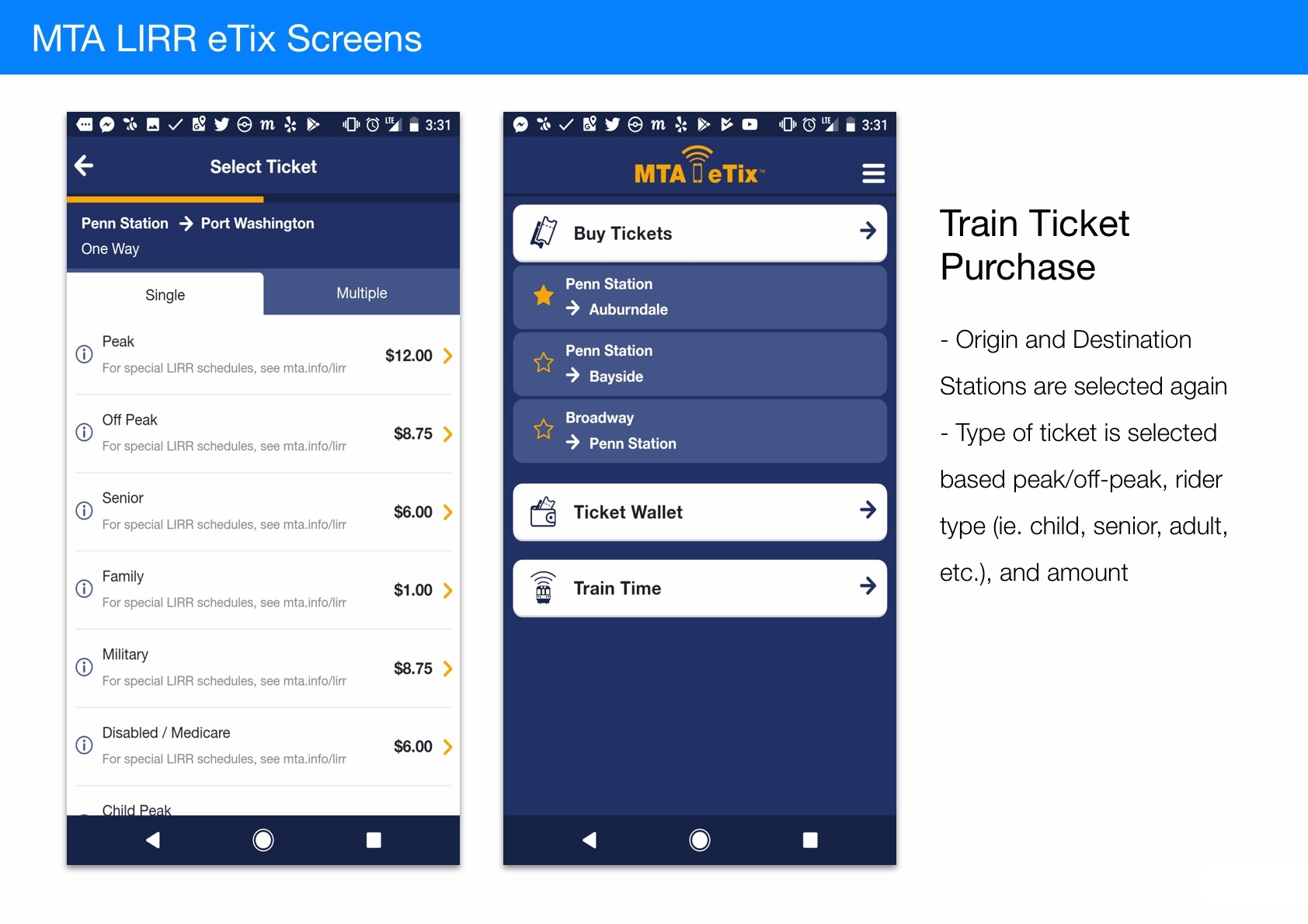

To view train schedules and buy tickets, users have to use TWO apps.

Brainstorm & Design

Brainstorm & Design

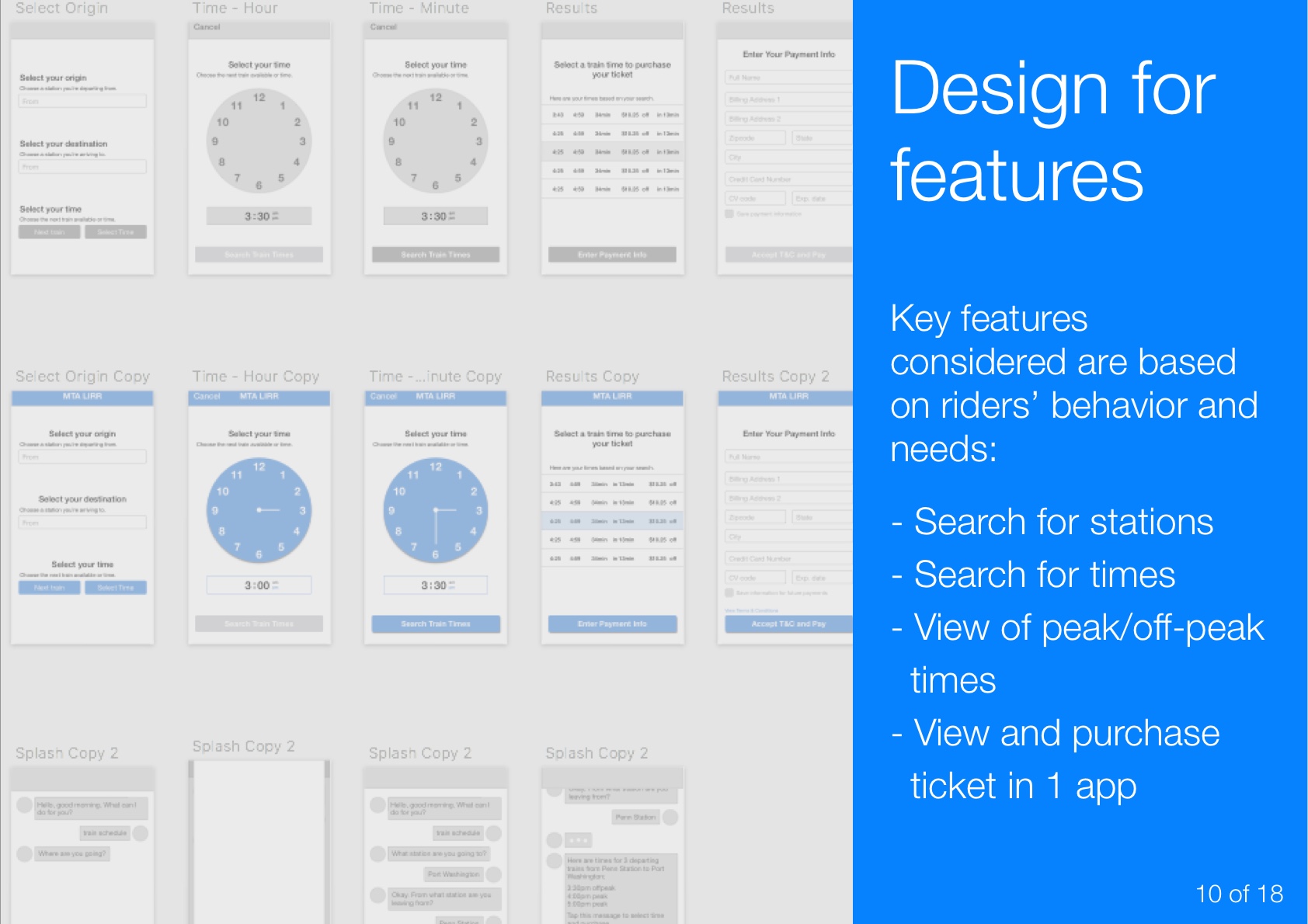

The objective here is to consider all kinds of solutions, and select the best one based on time and technical feasibility. Tools used here is sketching, wireframing, low-fidelity design in Sketch.

Design Iterations

Design Iterations

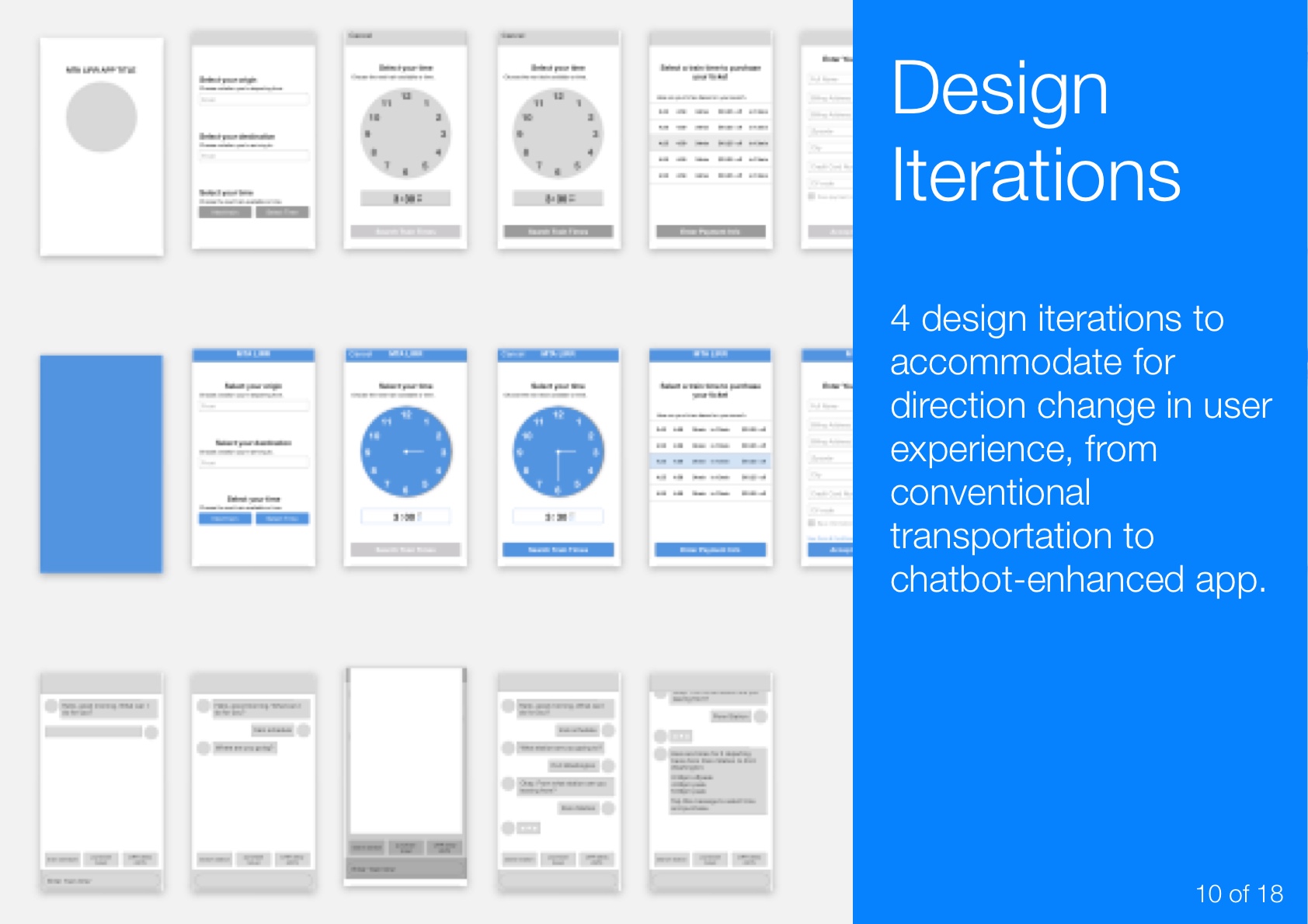

From conventional transportation to chatbot-enhanced app design took 4 iterations to accommodate the design pivot, from sketches to final designs.

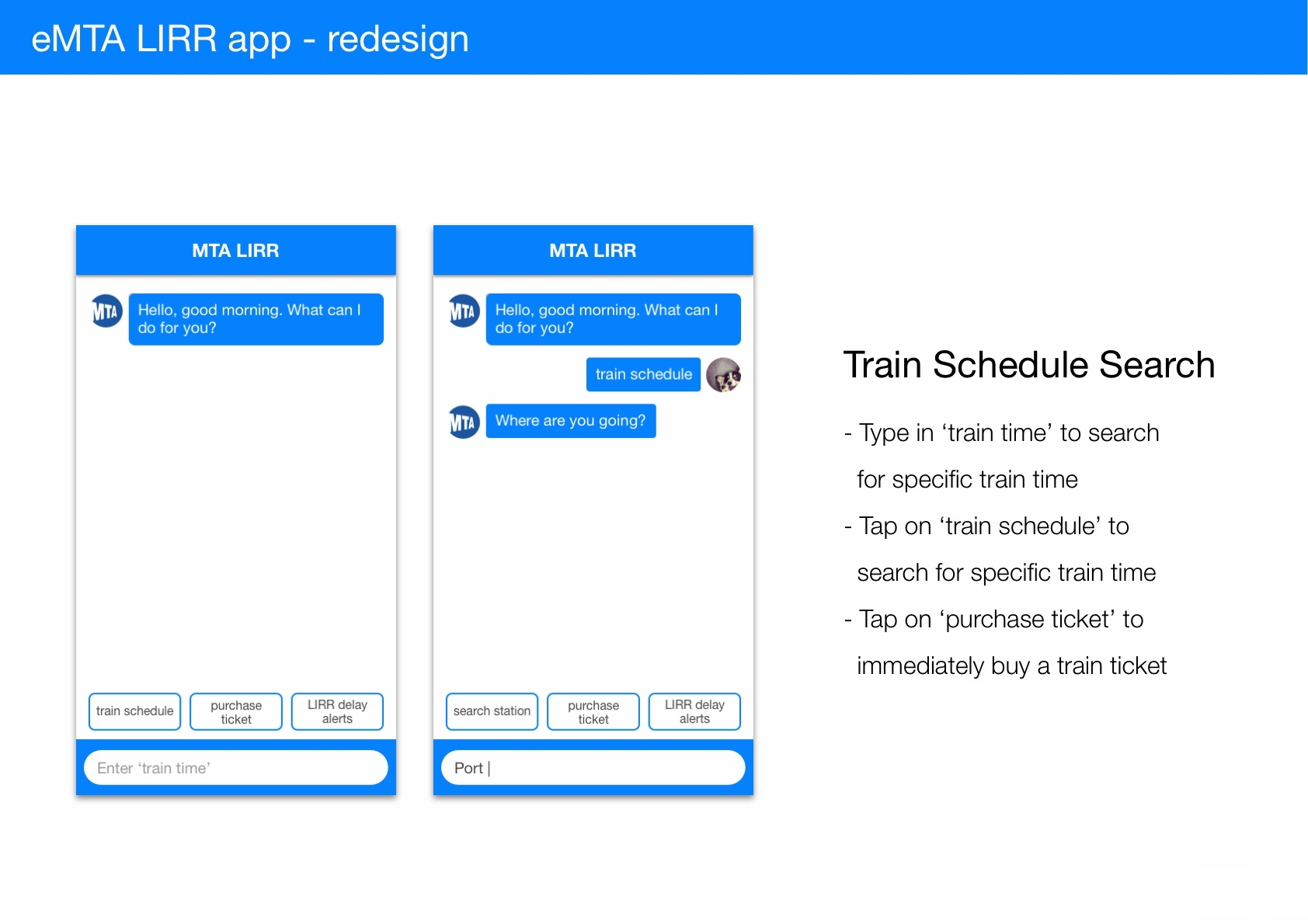

Workflows in Screens

Workflows in Screens

Workflow of purchasing a ticket in 4 progressive iterations.
